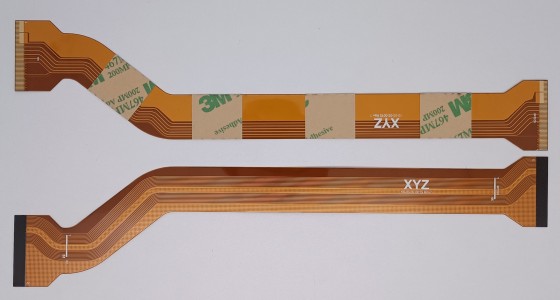

The above picture is a 4Layer Flex PCB, the flex PCB spec is: 4layer, PI (12/25, adhesiveless), 0.2mm thickness, Outer ED Copper 12um, Inner ED Copper 12um, Both Sides Yellow Coverlay, White Silkscreen, ENIG Finish (gold 2u"), Top Side do PI stiffener (total thickness 0.3mm), bottom side do 3M467 Adhesive.  The stack-up can be found below:



Stack-upFPC Thickness (um)FPC + PI Stiffener Thickness (um)FPC + 3M467 Thickness (um)
PI Stiffener 125um
Top Coverlay27.5um27.5um27.5um
Copper+Plating12um+6um12um+6um12um+6um
Adhesive0um0um0um
PI25um25um25um
Adhesive13um13um13um
Copper12um12um12um
PI Coverlay25um25um25um
Copper12um12um12um
Adhesive13um13um13um
PI25um25um25um
Adhesive0um0um0um
Copper+Plating12um+6um12um+6um12um+6um
Bottom Coverlay27.5um 27.5um
3M 467  50um
Total Thickness (um)200um +/-30um300um +/-50um250um +/-50um



Normally we can finish 1L & 2L Flex PCB in 5-7days, and quickest 1-2days based on the design, the production time need about 8-10days. The lead time details can be found in below form for your reference:



Lead Time for Flex PCB

Layer Standard FPC Specification

Quickest Protype

 Standard Prototype

Production Time

1L

1Layer, PI, 0.05mm-0.2mm thickness, 6um-100um base copper, Yellow Coverlay, White silkscreen, ENIG

1-2 Days5-7 Days8-10 Days

2L

2Layer, PI, 0.08mm-0.3mm thickness, 6um-100um base copper, Yellow Coverlay, White silkscreen, ENIG

1-2 Days5-7 Days8-10 Days

4L

4Layer, PI, 0.2mm-0.4mm thickness, 6um-100um base copper, Yellow Coverlay, White silkscreen, ENIG

3-4 Days8-10 Days10-12 Days

6L-16L

Based on the customers requirements.

6-8 Days12-14 Days14-18 Days



FPC has single sided FPC, double sided FPC, multi-layer FPC and Rigid-flex PCB. The main substrate is polymide FCCL and it has high heat resistance and stable size. Following are the common layer FCCL structure and stack up for Flex PCB for your reference. The FPC final thickness could be adjusted flexibly with different thicknesses of PI, adhesive, copper, etc.



FCCL Material Thickness
Coverlay/Solder Mask 2Layer FCCL
 PI (12.5/25/50/100um, etc.) Copper (6/9/12/18/35/70/100um, etc.)
 AD (15/25/35/50um, etc.) AD (0/12.5/20/25um, etc.)
  PI (12.5/25/50/100um, etc.)
1Layer FCCL AD (0/12.5/20/25um, etc.)
 Copper (6/9/12/18/35/70/100um, etc.) Copper (6/9/12/18/35/70/100um, etc.)
 AD (0/12.5/20/25um, etc.)
 PI (12.5/25/50/100um, etc.)



Flex PCB Stack-up Structure
